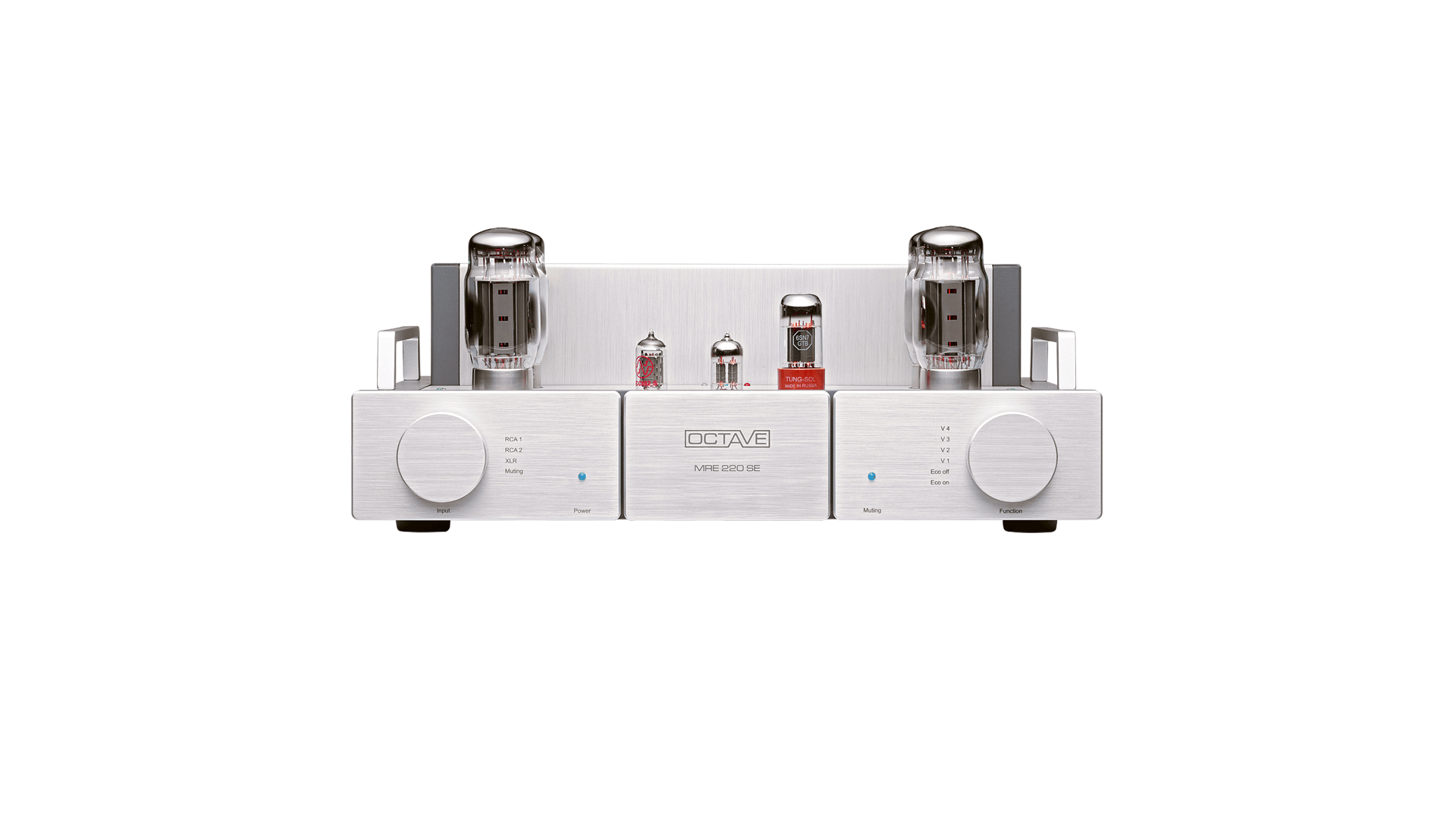

MRE 220 SE

MRE 220 SE: rock solid and yet flexible

After eleven years, and after extensive technical development projects at Octave, it was time to further adapt the MRE 220 mono power amplifiers - the rock in the surf - to the higher demands of modern loudspeakers. Long listening sessions led to the solution of an adjustable damping factor. The new MRE 220 SE damping factor can now be flexibly adjusted to ideally suit the respective speaker - resulting in rock solid reproduction quality with virtually any loudspeaker.

An upgrade from MRE 220 to MRE 220 SE is possible. The upgrade is only available for European countries.



Available Colors: Silver or Black

Description

The MRE 120 received critical praise upon its introduction and for the 10 years it was in production. In 2004, it was replaced by the MRE 130 after a decade of experience and further development of the core MRE 120 design. The MRE 130 made improvements in detail retrieval and stability through refinements in its circuitry, most critically, in the output stage. Nearly another decade later, a major overhaul of the MRE series was undertaken based on the newly-developed KT 120 power tube. The KT 120 enabled greater power reserves and an even wider bandwidth in the MRE power amplifier output stage. Extended listening tests with a newly-developed output transformer and power supply led to the release of the MRE 220 in 2013. Its special virtues resulted in a unique combination of extremely high reliability with the utmost level of sonic finesse. The MRE 220 served as the optimal power amplifier for an unusually wide range of loudspeaker combinations. Whether employed in a bi-amp configuration with horn systems, or simply mated directly to a wide variety of high-end loudspeakers available in the global market, the MRE 220 remains a rock solid reference. Now, yet another 10 years later, Octave has taken the MRE series to another level: introducing the MRE 220 SE.

Today’s modern loudspeaker designs feature high-resolution and fidelity beyond what was achieved in the past. This, combined with the triumph of high-resolution digital formats and an extraordinary leap in vinyl playback fidelity, has led to an unprecedented quality of music playback in modern high-end systems. Despite all efforts, developing a power amplifier that harmonizes perfectly with all loudspeakers is - as experience shows – still very difficult, if nearly impossible. The requirements of the loudspeaker are too different in terms of power requirements, bandwidth and its performance, which is affected by the damping factor (and/or negative feedback) of the power amplifier.

In listening tests with many different loudspeakers during the MRE 220 SE design process, an important new tool emerged that ensures more optimal matching between our amplifier and a wider range of loudspeaker designs: an option to vary negative feedback that impacts the attenuation factor. Through use of chassis-mounted switches, the listener can choose between two damping factor settings, “LOW” or “HIGH”, along with separate settings for negative feedback. This is a completely new approach to the problem of a tube power amplifier that has to cope as well as possible with all the loudspeakers available on the market. With this unique adjustment option, the interaction of the MRE 220 SE with nearly any loudspeaker can be optimized almost perfectly. The result of this flexibility speaks for itself: an incredibly clear, spacious soundstage with a perfectly resolved and entrancing midrange that is free of any impurities, along with a silky, beautiful tonal balance.

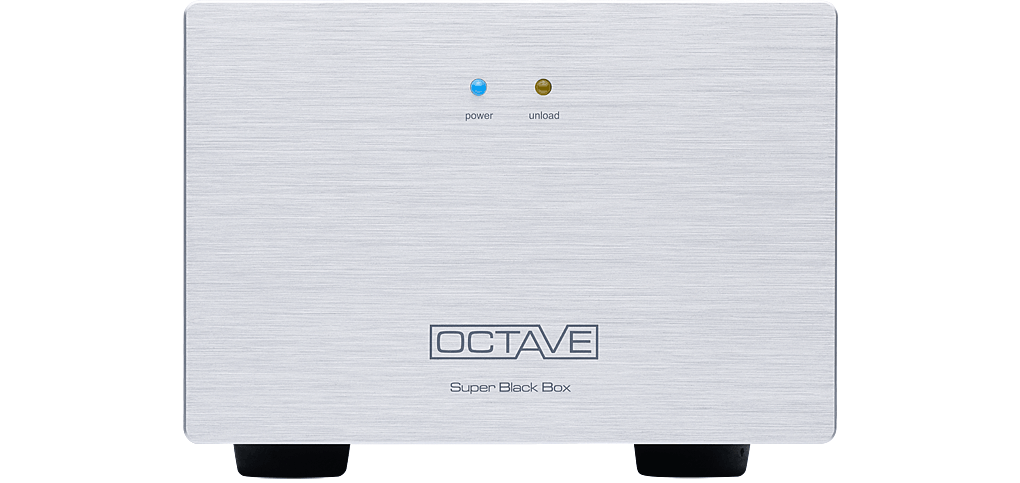

Of course, the MRE 220 SE has power management with soft start electronics, the protection system and, like all power and integrated amplifiers, the Eco Mode, a BIAS setting and display, the power selector and a (Super) Black Box Connection. (See technology for description)

General facts

Basic model MRE 220 SE (pair)
Design Silver or Black
Tube configuration Per Amplifier: 4 x KT 88-S4A-Carbon, optional 4 x KT 120 TS or 4 x KT 150 TS
Connections Inputs: 1 x RCA, 1 x XLR; Output: Speaker output suitable for banana plugs and cable lugs
Dimensions 488 x 229 x 412 mm (W x H x D)
Weight 29.8 kg

Features

Eco mode Eco mode
Power selection Adaptation to alternative power tubes
Bias control Quiescent current display and setting
Protection System Soft start; Protection circuit for amplifier and power tubes
Inputs 1 x RCA + 1 x XLR switchable

Specifications

Output power at 4 ohms High: 200 W (RMS) / Low: 140 W (RMS)
Frequency response 20 Hz - 70 kHz / -3 dB at full power
Input resistance 50 kOhm RCA / 25 kOhm XLR
Signal-to-noise ratio -116 dB (100 µV 150 Hz - 15 kHz)
Amplification +26 dB RCA
Input sensitivity 1 V RCA; 2 x 0.5 V XLR
Damping factor switchable, DF Low = 4, DF High = 8, (8 ohms load)

Options

Review 06/2024 - English version

„With my unique equipment configuration and setup, it felt as though I was reviewing two closely related albeit different monoblocks. Fed by XLR, the Octave MRE 220 SEs sounded warm, round, and full; fed by RCA, they sounded more neutral, with more varied colors but a bit less substantial. In both cases, their beauty of sound and ability to communicate music's transformative essence won out over other considerations.”

USA - stereophile - Jason Victor Serinus - June 2024


Read more
